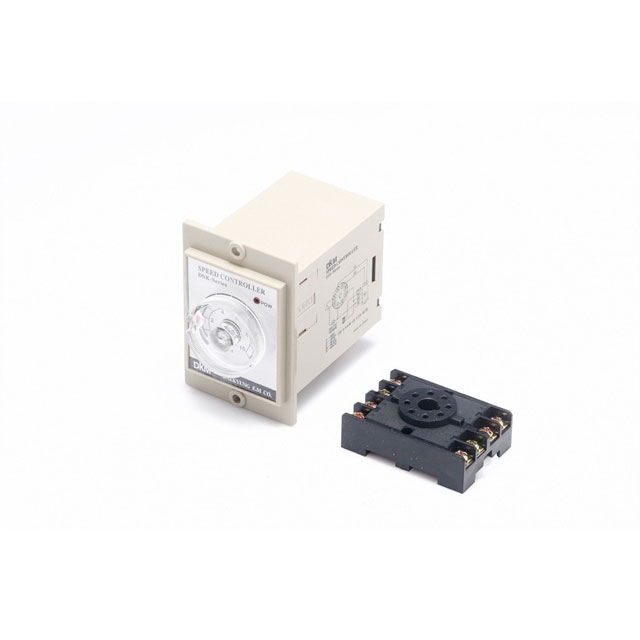

Speed Controller DSK

- Front panel potentiometer
- Socket type
(Connecting motor with socket)

 System Configuration


DSK Controller Specification
ItemSpecification
Rated Input Voltage220VAC 50/60Hz
Voltage Regulationfrom -10% to +10% of 220VAC
Power ConsumptionBelow 4VA
Control ModePhase Loop Control (0 to 210 VAC)
Power On/Off SignalRed Color of LED
Speed Set Range90-1750rpm (18Hz-360Hz Tacho)
Ambient Temperature and Humidityfrom -10℃ to +55℃, 35-85% RH
Weight142g
Dimension58(W) x 85(H) x 100(D)mm
Insulation Resistance100㏁ or more when DC500V mega is applied between the windings and the frame after rated motor operation under normal ambient temperature and humidity
Dielectric StrenghtSufficient to withstand 1.5KV at 50/60Hz applied between the windings and the frame for 1 minute after rated motor operation under normal ambient temperature and humidity

Dimension

Connection Diagram
